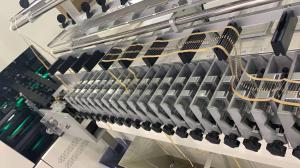

| Model | JAGUAR-A30C-AS-IN |
| Max Speed | 19000CPH |
| Insert Direction | 4 directions: 0°,90°,180°,270° |
| Alignment System | Passive clamp + CAM alignment |
| Components Speed | Component 5.0mm~20mm(Jumper 5mm~22mm ) |
| PCB Size | Minimum 50mm*50mm,Maximum 285mm*350mm |
| PCB Thickness | 0.79~2.36mm |
| Conveyor Height | 900mm |
| Conveyor Width | 50mm-285mm(adjustable) |
| Component Type | Capacitor;transistor;diode;resistance;inductance;fusewire and so on tape packaging materials |
| Jumper (JW) | Independent transmission mode. Diameter: 0.5mm~.6mm tinned copper wire |
| Insert Bending Length | 1.2-2.2mm(adjustable) |
| Appearance Size | L1800xD1450xH1500 mm |
| Feeder Station Size | 2000mm× 1000mm× 1500mm |
| Feeder Capacity | 20 |
| Weight | 1200kg |
| Power Supply | 220V,AC(Single phase)50/60HZ,1.5KVA; |
| System Protection | Configure UPS |
| Power Consumption | 1.5KW(Energy-saving type) |
| Environmental conditions | Ambient temperature 5~25 degrees |
| Machine noise: | 60 decibels |
| Hole Correction Mode | Machine vision system |
| Drive system | AC servo AC motor |
| Delivery Mode | Double chain and double servo drive |
| Data Input | USB interface input (EXCEL document format) |
| Control system | Chinese operating interface (WINDOWS system control platform) LCD display |
| Control Mode | Automatic and semi-automatic |
| Feeding Mode | Motor feeding board left to right (optional right to left) |
| Programming Mode | Manual programming |
reflow oven,smd soldering,soldering machine,reflow soldering, reflow soldering oven,smt reflow oven,reflow machine,smd reflow oven,pcb oven,soldering oven,smd soldering machine,pcb reflow oven,cheap reflow oven,t962 reflow oven,convection reflow oven, reflow oven price,small reflow oven,reflow soldering machine,reflow oven kit,smd oven,smt oven,smd soldering oven,smt reflow,low cost reflow oven,smd reflow,surface mount soldering,lead free reflow oven, hot air reflow, infrared reflow, convection reflow, reflow station, reflow soldering oven price,infrared oven,smt reflow oven manufacturers, hot air reflow ovenKeywords:
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
