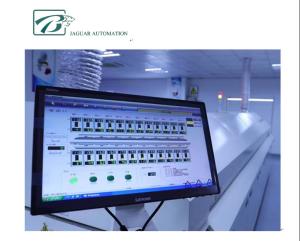

JAGUAR High End 12 Zones Lead Free Hot Air Reflow Oven
Model No.: R12
JAGUAR R High-end series was designed for high standard applications, such as Semi-conductor,
automobile, military related & etc…, which provides optimized lead-free processing, with high precision
of heating and cooling, low power & nitrogen consumption, R series is favored by senior application customers.
Features:
1. Heating element modular design, easy use easy manteinance
2. Nut shell type of thermal tube, thermal wire no contact with air, more durable
3. Heating is rolling start mode, providing the perfect solution for limited power supply customer
4. Configure 3 flux recycle devide, keep furnace clean and protect environment
5. Special harden treatment guide rail, no deformation in long time use
Specification:
| Model | JAGUAR R12 |
| Heating System | Number of heating zones | Top 12/Bottom12 |
| Heating passage | 4640mm |
| Heating style | Top: hot air; bottom: hot air |
| Cooling style | Force air |
| Conveyor System | Max. Width of PCB | 450mm |
| Mesh belt width | 500mm |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 900±20mm |
| Conveyor type | Mesh+Rail |
| Conveyor speed | 0-2000mm/min |
| Fixed track | Front track fixed(option: rear track fixed) |
| Control system | Power supply | 3 phase 380V 50/60Hz |
| Total power consumption | 44kw |
| Startup power consumption | 42kw |
| Steady consumption | 10-14KW |
| Warming time | About 30 mins |
| Temp. setpoint | Room temperature-300℃ |
| Temp. control method | PID close loop control + SSR driving |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage (80 GB) |
| Nozzle plate | 8mm Thick Aluminum Plate Copper |
| Abnormal Alarm | Abnormal temp. (overtemp/low temp.) |
| Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal |
| General | Dimension(L*W*H) | 7200×1350×1490mm |
| Weight | 2550KG |
| Color | Computer grey |
