Lead Free Protect PCB Against Oxidation Hot Air Reflow Oven

R Series Lead-free Hot Air Reflow Oven (N2 Optional) R8-N

R series lead-free hot air reflow oven can meet military level SMD soldering requirements, for example: PC mother board, Precision controller, Mobile phone and Micro electronic technology instrument and meters.

• Totally meet various requirements for lead free processing
• Windows XP operation system, Chinese/English can be switched online
• Patented air management system to make hot air convection more efficient and faster thermal compesation
• PLC+PID closed loop conttrol to achieve high precise temperature control and repeatable profiles
• Dual temperature sensors and dual safely control, Over temperataure alarm, Abnormal speed alarm and Board dropped alarm
• Modular design to get quick and simple maintenance so that reducing the maintenance time & cost

  Specification:

  Model	JAGUAR R8
  Heating System	Number of Heating Zones	Top 8/Bottom 8
  	Number of Cooling Zones	Up3 Bottom 3
  	Heating Passage	3121mm
  	Heating Style	Hot Air
  	Cooling Style	Air Oven: Forced Air (Optional:Nitrogen Oven: Water Chiller)
  	Exhaust Volume	10m³/min * 2 Exhaust
  Conveyor System	Max. Width of PCB	420mm
  	Mesh Belt Width	500mm
  	Conveyor Direction	L→R(or R→L)
  	Process Height	900±20mm
  	Conveyor Type	Mesh and Chain
  	Conveyor Speed	0-2000mm/min
  	Auto Lubrication	Standard
  	Fixed Track	Front Rail Fixed(Optional: Rear Rail Fixed)
  	Product Clearance	Top and Bottom 25mm
  Control system	Power Supply	5 cables 3 phase 380V 50/60Hz
  	Total Consumption	38kw
  	Startup Consumption	30kw
  	Steady Consumption	6-9KW
  	Ramp Up Time	About 20 mins
  	Temp. Set-point Range	Room Temperature-300℃
  	Temp. Control Method	PID Close Loop Control & SSR driving
  	Temp. Control Precision	±1℃
  	Data storage	Process Data and status storage(80GB)
  	Nozzle plate	Aluminum Alloy Plate
  	Abnormal Alarm	Abnormal Temp. (Overtemp/Low temp.)
  	Board Dropped Alarm	?
  	Tricolor Light Tower	Amber-warming,Green-normal,Red-abnormal
  General	Dimension(L*W*H)	5300×1350 ×1550mm
  	Weight	1950KG
  	Color	Computer gre

FEATURES

Reliable Conveyor System

• The rail is dealt with hardened process to make it more stability
• The conveyor chain adpoted with single Pin-plate design, Simple and practical

Control System and Heating System

• Siemens PLC+IPC with precise controlling unit and stabilized performance
• The longer heating zones able to get high production officiency and throughput

selective soldering machine

quick soldering station

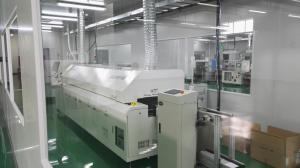

Lead Free Protect PCB Against Oxidation Hot Air Reflow Oven Images
